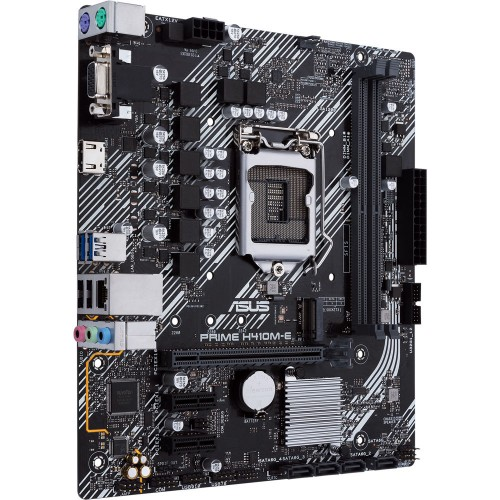

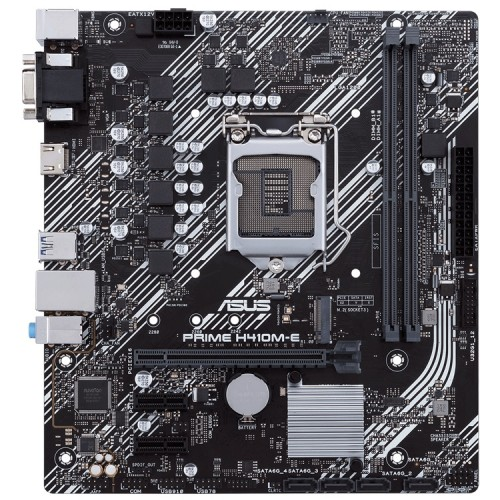

Asus Prime H410M-E Intel 10th Gen Micro-ATX Motherboard

Features

  • Model: Asus Prime H410M-E
  • Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors
  • ASUS OptiMem
  • 5X Protection III
  • Ultrafast Connectivity

8,000.00৳

Ask Our Experts For Details

Live Chat |09613828201

Description

Specification:

Basic Information
Supported CPU Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H410
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor: 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
Expansion Slots
PCI Intel 10th Gen Processors: 1 x PCIe 3.0 x16 (x16 mode)
Intel H410 Chipset: 2 x PCIe 3.0 x1
M.2 Socket 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
Memory
Type Dual Channel Memory Architecture
Slots 2 x DIMM
Supported Memory Supports 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
OptiMem
Maximum Mamory 64GB
Graphics
Graphics Integrated Graphics Processor
1 x D-Sub
1 x HDMI 1.4b

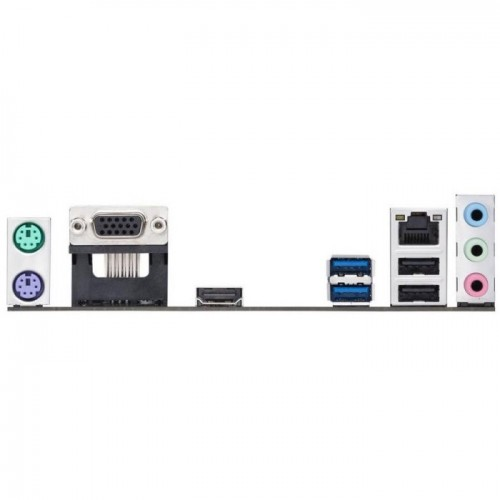

Connector & Ports
HDMI 1 x HDMI 1.4b
USB (s) Rear USB Port ( Total 4 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
LAN Port (s) Realtek RTL8111H
Supported Storage Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
Intel H410 Chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
4 x SATA 6Gb/s port(s)
Audio Realtek ALC887 7.1-Channel High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature:
– LED-illuminated design
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
Internal I/O Ports 1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector
D-Sub (s) 1 x D-Sub
Warranty Information
Manufacturing Warranty 03 Years
Others
Special Features Software Features:
ASUS Exclusive Software
Armory Crate
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert
– EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Special Features:
ASUS 5X PROTECTION III
– ASUS DIGI+ VRM
– ASUS LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot Core
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design

Description :

Asus Prime H410M-E Intel 10th Gen Micro-ATX Motherboard

ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H410 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware. Comprehensive controls form the foundation of the ASUS Prime series. The Prime H410 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity. Prime H410 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Prime H410 series is built to handle the additional cores and increased bandwidth of 10th Generation Intel Core processors. An H410 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible transfer options. Prime H410 series add the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look. Intelligent design and premium hardware create audio quality, unlike anything you’ve ever experienced. Separates analog/digital signal domains, significantly reducing multi-lateral interference. Ensures minimal crosstalk between audio paths. Premium parts provide an immersive sound signature, with exceptional fidelity.
