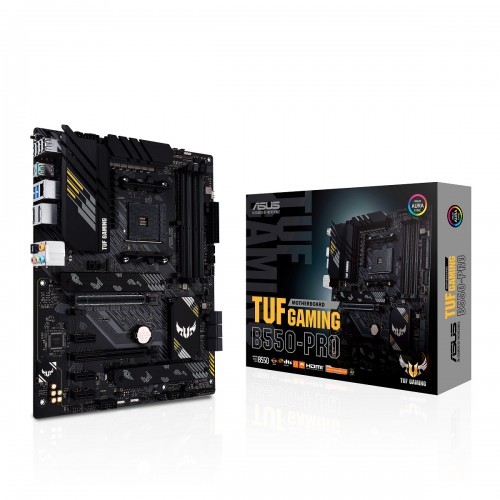

Asus TUF Gaming B550 Pro ATX AM4 Motherboard

Key Features

  • Model: TUF Gaming B550 Pro
  • Supports AMD Ryzen 5000 / 4000 G/ 3000 Series desktop Processors
  • Realtek S1200A Codec
  • Comprehensive Cooling
  • Two-Way AI Noise Cancelation

0.00৳

Ask Our Experts For Details

Live Chat |01978784025

Share on facebook
Share on twitter
Share on email
Share on google
Share on whatsapp
Share on skype

Description

Specification

Basic Information
Supported CPU AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset AMD B550
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 (x16 mode)
AMD Ryzen 4000 G-Series Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
M.2 Socket 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support
Memory
Type DDR4
Slots 4 x DIMM
Supported Memory AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
4600(O.C)/ 4400(O.C)/ 4333(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
AMD Ryzen 4000 G-Series Processors
5100(O.C)/ 4866(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4333(O.C.)/ 4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU
Maximum Memory 128GB
Graphics
Graphics 1 x DisplayPort 1.2
1 x HDMI 2.1([email protected])
Supports AMD 2-Way CrossFireX Technology
Connector & Ports
HDMI 1 x HDMI 2.1([email protected])
Display Port (s) 1 x DisplayPort 1.2
USB (s) Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
Front USB Port ( Total 7 )
3 x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C)
4 x USB 2.0 port(s)(4 x Type-A)
LAN Port (s) Realtek RTL8125B 2.5Gb Ethernet
TUF LANGuard
Supported Storage Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors :
1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD Ryzen 4000 G-Series Processors :
1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
Audio Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
– Exclusive DTS Custom for GAMING Headsets.
– Optical S/PDIF out port(s) at back panel
– Audio cover
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
– Unique de-pop circuit
Internal I/O Ports 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1 front panel TypeC™ connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
TPM (Trusted Platform Module ) 1 x SPI TPM header
Warranty Information
Manufacturing Warranty 03 Years

Description

Asus TUF Gaming B550 Pro ATX AM4 Motherboard

Asus TUF Gaming B550 Pro ATX AM4 Motherboard distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B550-PRO is the perfect foundation for your next high-core-count battle rig. The onboard VRM of TUF Gaming B550-PRO utilizes 12+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Processors demand. Asus TUF Gaming B550 Pro Motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. TUF Gaming B550-PRO provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. 2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers. Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface, and reduces network lag.
