Description
Description :

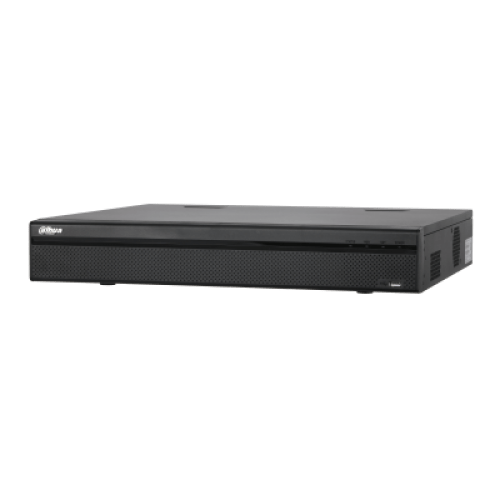

Dahua 4432-4K 32 Channel NVR
Dahua NVR 4432-4K Up to Support 32 IP camera input
Dahua NVR 4432-4K Up to Support 32 IP camera input
- 32 Channel 1.5U 4K&H.265 Lite Network Video Recorder
- H.265/H.264 codec decoding
- Max 200Mbps Incoming Bandwidth
- Up to 8MP Resolution for Preview and Playback
- HDMI/VGA simultaneous video output
- Support ANR technology to enhance the storage reliability when the network break down
NVR 4432-4K Specifications
System
- Main Processor Quad-core embedded processor
- Operating System Embedded LINUX
Display
- Interface 1 HDMI, 1 VGA
- Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
- Multi-screen Display 1/4/8/9/16
- OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
- Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
- Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Tampering
- Alarm input 16 Channel, Low Level Effective,
- Green Terminal Interface
- Relay Output 4 Channel, NO/NC Programmable,
- Green Terminal Interface
- Playback and Backup
- Playback 1/4/8/16
- Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
- Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play,Next File, Previous File, Next Camera,Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
- Backup Mode USB Device/Network
Storage
- Internal HDD 4 SATA III Port, Up to 6 TB capacity for each HDD
- HDD Mode Single
Auxiliary Interface
- USB 2 USB Ports (1 USB2.0, 1 USB3.0)
- RS232 1 Port, for PC Communication and Keyboard
- RS485 1 Port, for PTZ Control
- Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom,Canon, CP Plus, Dynacolor, Honeywell, Panasonic,
Audio and Video IP Camera
- Input 16/32 Channel
- Two-way Talk 1 Channel Input, 1 Channel Output, RCA
- Recording Compression H.265/H.264
- Resolution 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
- Record Rate 200Mbps
- Bit Rate 16Kbps ~ 20Mbps Per Channel
- Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
- Record Interval 1 ~ 120 min (default: 60 min), Pre-record:
- 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Network
- Interface 2 RJ-45 Ports(10/100/1000Mbps)
- Ethernet Port 2 Ethernet Ports Joint Working or 2 Independent
- 1000Mbps Ethernet Port
- Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DNS, IP Filter, PPPoE,DDNS, FTP,
- IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip
Max. User
- Access 128 users
- Smart Phone iPhone, iPad, Android
- Interoperability ONVIF 2.4, CGI Conformant
Electrical
- Power Supply AC100V ~ 240V, 50 ~ 60 Hz
- Power Consumption <11.7W (Without HDD)
Dimensions
- 1.5U, 440mm×411.1mm×76mm, (17.3″ x 16.2″ x 3.0″)
- Net Weight 4.5kg (9.9 lb) (without HDD)
- Gross Weight 7kg(15.4 lb)(without HDD)
