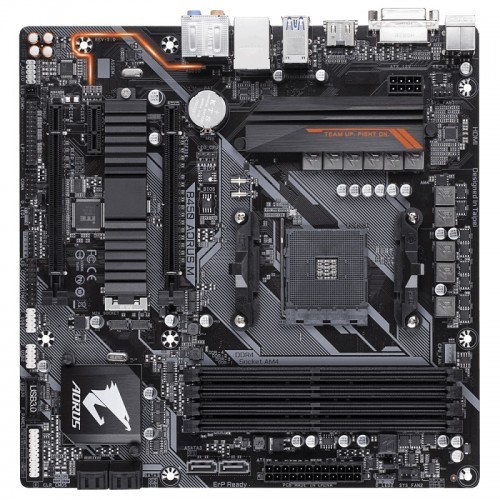

Gigabyte B450 AORUS M AMD Micro ATX Motherboard

  • Model: B450 AORUS M
  • Supports Up to AMD Ryzen 5000 series Processors
  • Chipset: AMD B450
  • Memory: 4 x DDR4, Max 64 GB
  • 3 x PCI Express slots
Brand:

13,300.00৳

Ask Our Experts For Details

Live Chat | 01978784025

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Description

Specification

Basic Information
Supported CPU AMD Ryzen™ 2nd Generation processors
AMD Ryzen™ with Radeon™ Vega Graphics processors
AMD Ryzen™ 1st Generation processors
Chipset AMD B450
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* Actual support may vary by CPU.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Memory
Type Dual Channel DDR4 Memory Technology
Slots 4 x DIMM
Supported Memory Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 64 GB
Graphics
Graphics 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.2.
* Actual support may vary by CPU.
Max Shared Memory 16 GB
Connector & Ports
HDMI 1 x HDMI
DVI-D (s) 1 x DVI-D
USB (s) Chipset:
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.1 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s) Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Audio Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x CPU cooler LED strip/RGB LED strip header
1 x RGB (RGBW) LED strip header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only)
Warranty Information
Manufacturing Warranty 03 years

Description

Gigabyte B450 AORUS M Micro ATX AMD AM4 socket ryzen series CPU supported Dual Channel DDR4 maximum 64GB memory motherboard has the capability of Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal Guard and RGB FUSION with Multi-Zone LED Light Show Design that supports Digital LED & RGB LED Strips.  Considering the graphics, it will support HDMI, DVI-D Ports for Multiple Display having maximum resolution of 1920×1200@60 Hz for DVI-D & 4096×2160@60 Hz for HDMI port. This High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting motherboard has the facility of USB Type-Câ„¢, Exclusive 8118 Gaming LAN with Bandwidth Management with Smart Fan 5 Features 5 Temperature Sensors and 3 Hybrid Fan Headers with FAN STOP and APP Center Including EasyTuneâ„¢ and Cloud Stationâ„¢ Utilities. This Anti-Sulfur Resistors Design board has Ultra Durableâ„¢ 25KV ESD and 15KV Surge LAN Protection and CEC 2019 Ready for saving Power with a Simple Click.
Buy Gigabyte B450 AORUS M board with 3 years of warranty facility available at best price for the market of Bangladesh. Shop online and place your order at our online shop to have your precious board.
