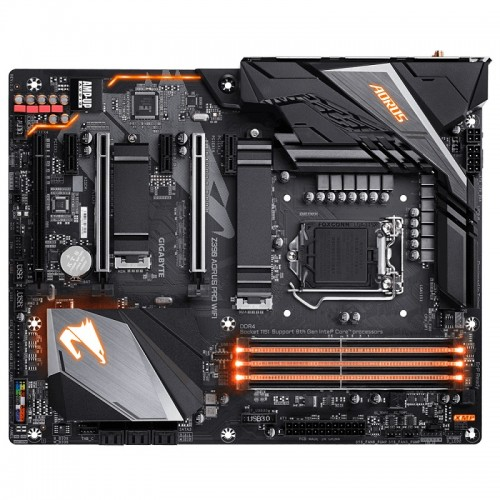

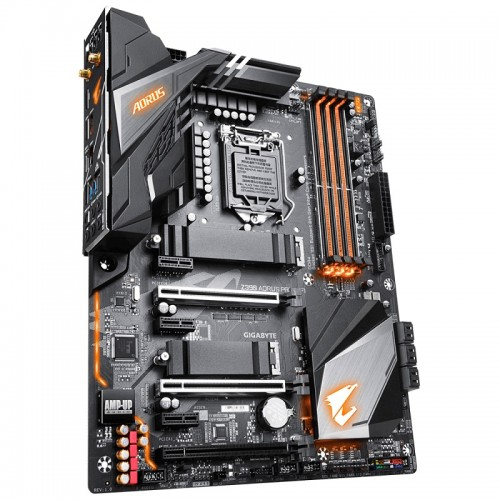

Gigabyte Z390 Aorus Pro Wifi 9th Gen Motherboard

Price 20,800৳
Regular Price 22,030৳
Status In Stock
Brand GIGABYTE

Features

  • Model: Gigabyte Z390 Aorus Pro Wifi
  • Supports 9th and 8th Gen Intel Processors
  • Intel® Z390 Express Chipset
  • Dual Channel Non-ECC Unbuffered DDR4
  • Front USB 3.1 Gen 2 Type-C™ Header

20,800.00৳

Ask Our Experts For Details

Live Chat |09613828201

Description

Specification:

Basic Information
Supported CPU Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
Chipset Intel® Z390 Express Chipset
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI -1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the –
– PCIEX16 slot.1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot –
– Operates at up to x8 mode.1 x PCI Express x16 slot, running at x4 (PCIEX4)
3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
M.2 Socket 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module (CNVI)
Memory
Type 4 x DDR4 DIMM sockets
Slots Dual channel memory architecture
Supported Memory Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory 64 GB
Graphics
Graphics 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Max Shared Memory 1 GB
Connector & Ports
HDMI 1 x HDMI port
USB (s) 4 x USB 2.0/1.1 ports
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
2 x USB 3.1 Gen 2 Type-A ports (red)
3 x USB 3.1 Gen 1 ports
LAN Port (s) Intel® GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Audio 5 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x digital LED strip headers
2 x digital LED strip power select jumpers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C™ port, with USB 3.1 Gen 1 support
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Thunderbolt™ add-in card connector
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
2 x temperature sensor headers
Warranty Information
Manufacturing Warranty 03 Years

Description :

Gigabyte Z390 Aorus Pro Wifi 9th Gen Motherboard

Gigabyte Intel Z390 AORUS Motherboard with 12 Phases Digital VRM Solutions, Multi-cuts Heatsinks with Heatpipe, RGB Fusion, 802.11ac Wireless, Dual M.2 with Thermal Guards, Intel® GbE LAN with cFosSpeed. Compatible with Intel 9th & 8th gen (Socket LGA1151) i9, i7, i5,i3, Pentium & CDC processor. Supports 9th and 8th Gen Intel® Core™ Processors,Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs,Intel® Optane™ Memory Ready,12+1 Phases Digital VRM Solution with DrMOS,Advanced Thermal Design with Multi-cuts Heatsinks and Heatpipe,Onboard Intel® CNVi 802.11ac 2×2 Wave 2 Wi-Fi, Its also supports ALC1220-VB Enhance 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors,Intel® Gigabit LAN with cFosSpeed, RGB FUSION with Multi-Zone LED Light Show Design, Supports Addressable LED & RGB LED Strips,Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP, Front USB 3.1 Gen 1 Type-C™ Header,Dual Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal GuardsMulti-Way Graphics Support with Dual Armor and Ultra Durable™ Design, CEC 2019 Ready, Save Power With a Simple Click
