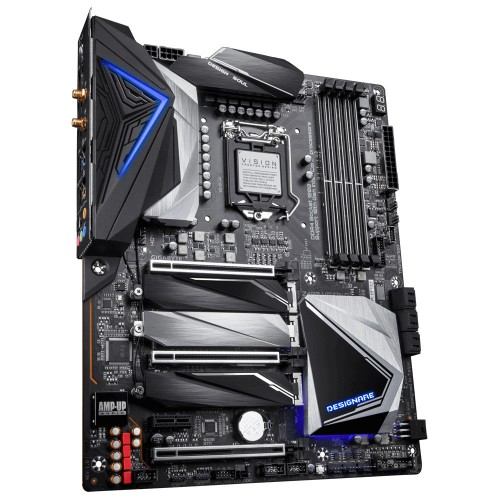

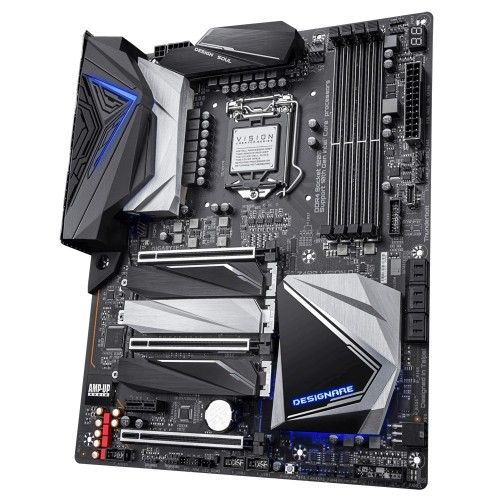

Gigabyte Z490 Vision D 10th Gen WiFi ATX Motherboard

Price 35,500৳
Regular Price 37,950৳
Status In Stock
Product Code 13117
Brand GIGABYTE

Features

  • Model: Gigabyte Z490 Vision D
  • Chipset: Intel Z490 Express
  • Intel Socket LGA1200 for 10th Gen Processors
  • 4 x DIMM, Max. 128GB DDR4
  • CrossFire and SLI Supported

35,500.00৳

Ask Our Experts For Details

Live Chat |09613828201

Description

Specification:

Basic Information
Supported CPU Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
Chipset Intel Z490 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for an Intel® CNVi wireless module (CNVI)
M.2 Socket x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
Memory
Type Dual channel memory architecture
Slots 4 x DDR4 DIMM
Supported Memory Intel Core i9/i7 processors:
Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Intel Core i5/ i3/ Pentium/ Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory 128 GB
Graphics
Graphics Integrated Graphics Processor+Intel® Thunderbolt™ 3 Controller:
2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Max Shared Memory 512MB

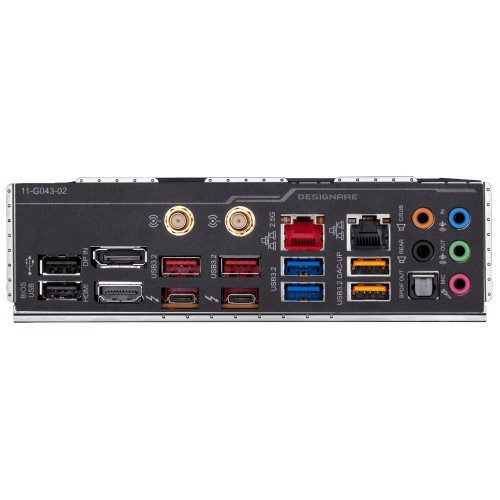

Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
USB (s) 2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp
Chipset+Intel Thunderbolt 3 Controller:
2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) 1 x Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)(LAN1)
1 x Intel GbE LAN chip (1 Gbit/100 Mbit) (LAN2)
Intel Wi-Fi 6 AX201
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
Audio Realtek ALC1220-VB codec
Support for DTS:X Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x PEG power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x temperature sensor headers
1 x Clear CMOS jumper
1 x Q-Flash Plus button
Warranty Information
Manufacturing Warranty 03 Years
Others
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Description :

Gigabyte Z490 Vision D 10th Gen WiFi ATX Motherboard

Maximum memory capacity on the Z490 motherboard is 128GB. After Intel updates the memory reference code, single-slot support up to 32GB. Therefore with populated 2 DIMM per channel on both channels, total memory capacity is 128GB, which was only available on the High-End Desktop (HEDT) platform. For users who always run out of memory capacity, there is more bandwidth now. Easier and smoother for those memory-intensive applications such as rendering and video editing. NVIDIA QUADRO 3D Workstation Professional Graphics Solutions are designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA, and SOLIDWORKS, Siemens NX, PTC Creo, and many more. GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with the latest utilities and drivers version. GIGABYTE’s EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one-click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most. he GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image, and backup your BIOS to an image. GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor set your preferred fan speed profile, create alerts when temperatures get too high, or record your system’s behavior; these are the possibilities of the System Information Viewer.

What is the price of Gigabyte Z490 Vision D Motherboard in Bangladesh?

The latest price of Gigabyte Z490 Vision D Motherboard in Bangladesh is 35,500৳. You can buy the Gigabyte Z490 Vision D Motherboard at best price from our website or visit any of our showrooms.
