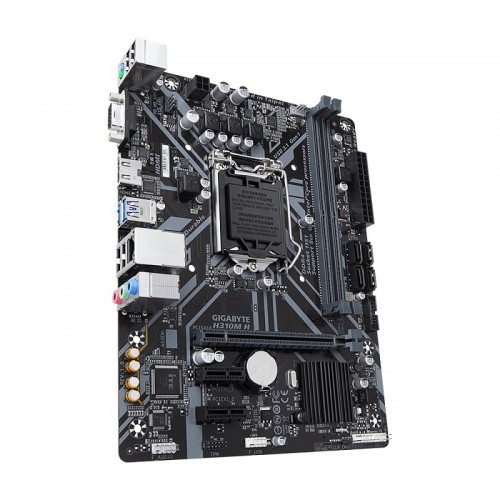

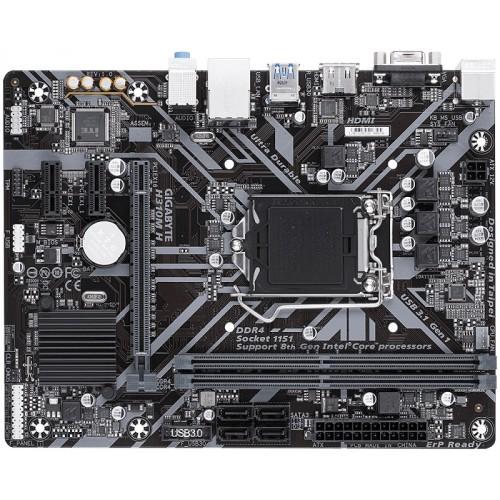

Gigabyte H310M H 8th Gen Micro ATX Motherboard

Features

  • Model: H310M H
  • Chipset: Intel H310 Express
  • Intel Socket 1151 for 8th Gen Core Processors
  • 2 x DIMM, Max. 32GB DDR4
  • 3 x PCIe slot

6,600.00৳

  • Lorem ipsum dolor sit amet, consectetur adipiscing
Product Details

Specification:

Basic Information
Supported CPU Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
Chipset Intel® H310 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Memory
Type DDR4
Slots 2 x DIMM sockets
Supported Memory Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
Maximum Mamory 32 GB
Graphics
Graphics 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Max Shared Memory 1 GB
Connector & Ports
HDMI 1 x HDMI port
USB (s) 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage 4 x SATA 6Gb/s connectors
Audio Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
Warranty Information
Manufacturing Warranty 03 Years

Description :

Gigabyte H310M H 8th Gen Micro ATX motherboard compatible with Intel (Socket LGA1151) i3, i5 & i7 processor. This 8-Channel HD Audio with High Quality Audio Capacitor board has dual channel DDR4 maximum 32GB memory and it has the capability of Ultra-Fast SATA 6Gb/s connectors and USB 3.1 Gen 1 interface. If we consider the graphics of this Anti-Sulfur Resistors Design board supports Intel HD graphics having the maximum resolution of 4096×2160@30 Hz for HDMI and 1920×1200@60 Hz for D-Sub port. This High Quality Audio Capacitors and Audio board has 3 x PCIe slot, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management,  Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP and all new GIGABYTE™ APP Center which is simple and easy use.
Gigabyte H310M H latest 8th gen mainboard with Intel H310 Express chipset is a great choice for your desktop setup and have the best price in Dhaka, Chattagram, Rangpur, Khulna & Sylhet. Order your PC components from Star Tech online shop and have the delivery at any place in Bangladesh.
