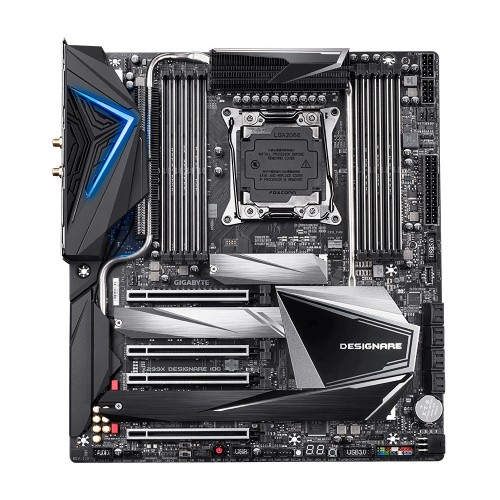

Gigabyte X299X AORUS Designare 10G Motherboard

Price 59,000৳
Regular Price 63,000৳
Status In Stock
Brand GIGABYTE

Features

  • Model: Gigabyte X299X AORUS Designare
  • Supports Intel Core X-series Processor Family
  • Intel Thunderbolt 3
  • Onboard Intel WiFi
  • Advanced Fins-Array Thermal Design

59,000.00৳

  • Lorem ipsum dolor sit amet, consectetur adipiscing
Product Details

Specification:

Basic Information
Supported CPU Support for Intel Core i7-7800X and above X series processors/ Intel Core i9 X series processors in the LGA2066 package
L3 cache varies with CPU
Chipset Intel X299 Express Chipset
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor E-ATX Form Factor; 30.5cm x 27.5cm
Expansion Slots
PCI Intel Core X series 48-lane processors:
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
Intel Core X series 44-lane processors:
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
1 x PCI Express x16 slot, running at x8 (PCIEX8_2)
1 x PCI Express x16 slot, running at x4 (PCIEX8_1)
Intel Core X series 28-lane processors:
1 x PCI Express x16 slot, running at x16 (PCIEX16_1)
1 x PCI Express x16 slot, running at x8 (PCIEX16_2)
1 x PCI Express x16 slot, running at x4 (PCIEX8_1)
M.2 Socket CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q)
Memory
Type 4 channel memory architecture
Slots 8 x DDR4 DIMM
Supported Memory Intel Core X series 48-lane processors:
Support for DDR4 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933/2666/2400/2133 MHz memory modules
Intel Core X series 44-lane/28-lane processors:
Support for DDR4 4200(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2666/2400/2133 MHz memory modules
Maximum Mamory 256 GB
Graphics
Graphics 2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 4096×2304@60 Hz
1-7, “Back Panel Connectors,” for more information
Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Max Shared Memory 1 GB
Connector & Ports
USB (s) CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q)
6 x SATA 6Gb/s connectors (SATA3 0, 1, 4, 5, 6, 7)
Support for RAID 0, RAID 1, RAID 5, and RAID 10
LAN Port (s) Intel 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit), supporting 2 RJ-45 ports
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q)
6 x SATA 6Gb/s connectors (SATA3 0, 1, 4, 5, 6, 7)
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
Intel VROC Ready
ASMedia SATA 6Gb/s controller:
2 x SATA 6Gb/s connectors (SATA3 2, 3), supporting AHCI mode only
Audio Realtek ALC1220-VB codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x VGA_PW power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
8 x SATA 6Gb/s connectors
1 x Intel® VROC Upgrade Key header
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x noise detection header
1 x Clear CMOS jumper
1 x power button
1 x reset button
1 x Clear CMOS button
2 x temperature sensor headers
2 x BIOS switches
Warranty Information
Manufacturing Warranty 03 Years
Others
Special Features Support for APP Center
@BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart Survey
System Information Viewer
USB Blocker
USB TurboCharger
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Description :

Gigabyte X299X AORUS Designare 10G Motherboard

Powered by Intel’s own Thunderbolt controller the new Thunderbolt™ 3 protocol, which is available over two USB Type-C™ connectors on the back I/O of the GIGABYTE X299X DESIGNARE 10G, brings an unprecedented single-wire bandwidth of up to 40 Gb/s — twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2 and USB 3.2, which is backward compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities. To unleash the full power of the new Intel 18 core CPU, the motherboard demands un-precedented strong power solution. GIGABYTE RDs selects the best components and never stop pursuing the highest overclock performance. That makes X299X DESIGN ARE 10G an un-beatable motherboard in the market. With Smart Fan, 5 users can ensure that their PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan, but 5 more hybrid fan headers that support both PWM and Voltage mode fans have also been introduced to make the motherboard more liquid cooling friendly. ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A). With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier and convenient. Users can expect excellent durability with the durable design of the pre-installed I/O shield. Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip.
