| Main Feature | ||
| Load Capacity | Overload capability 110% only audible warning, 110-130% for 30 sec, >130% for 100 ms | |
| Input Voltage | Nominal voltage 208Vac/220Vac/230Vac/240Vac Input voltage range 160Vac-300Vac from 50% to 100% load, 110Vac-300Vac up to 50% load |
|
| Output Voltage | Nominal voltage 208Vac/220Vac/230Vac/240Vac Static voltage Regulation at %100 ±2% linear load (On-Line and battery mode) Voltage THD at rated linear load <3% (linear load), <6% (non-linear |
|
| Frequency (Battery Mode) | 50/60 Hz | |
| Noise Level | < 45 dBA to 1 m | |
| Battery | 12V 2*9Ah, Lead-acid, sealed | |
| Rectifier Type | Yes | |
| Input Features | ||
| Frequency | Nominal frequency 50/60 Hz (selectable) Input frequency range (On-Line mode) ±7% |
|
| Power Factor | 0,99 | |
| Voltage Range | Nominal voltage 208Vac/220Vac/230Vac/240Vac Input voltage range 160Vac-300Vac from 50% to 100% load, 110Vac-300Vac up to 50% load |
|
| Output Features | ||
| Backup Time | 15 min | |
| Voltage Range | Nominal voltage 208Vac/220Vac/230Vac/240Vac Static voltage Regulation at %100 ±2% linear load (On-Line and battery mode) Voltage THD at rated linear load <3% (linear load), <6% (non-linear load) |
|
| Power Factor | 0,9 | |
| Transfer Time | 0 ms (On-Line) | |
| Manufacture Warranty | ||
| Warranty | 02 Years Warranty | |

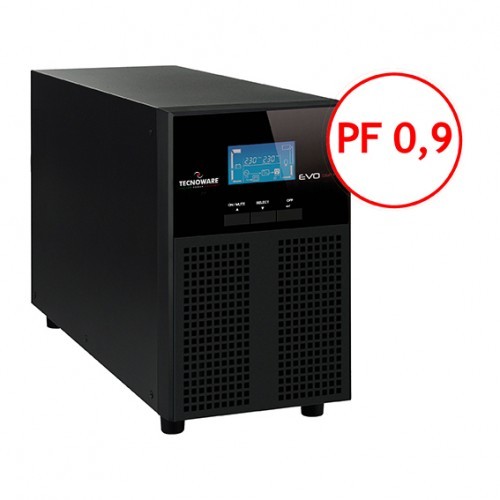

Tecnoware FGCEVDP1203MME 1 KVA UPS On-Line Double Conversion Technology without transformer (VFI-SS-111).Power Factor 0,9. Rectifier realized by IGBT technology and battery12V 2*9Ah. Active PFC Circuit (0.99).Compatible with Generators. Output voltage and frequency can be regulated from the front panel. Static Bypass. USB and RS232 ports.
