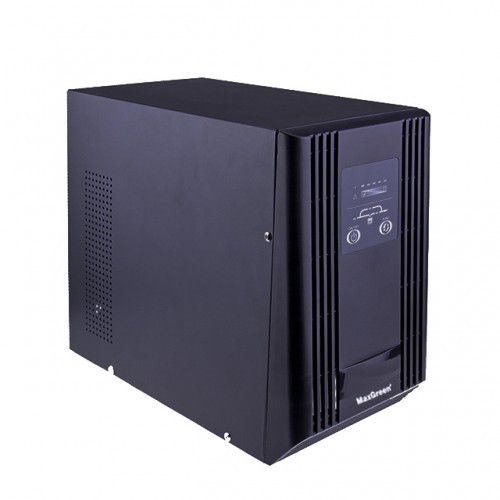

MaxGreen 2KVA Online UPS Long Backup (48V)

• Capacity 2000VA
• Input System Single phrase & earth ground
• Ranged Voltage 230Vac
• Frequency 50Hz
• Voltage rang 115~300VAC ± 5VAC
• Frequency range (45~55) ±0.5Hz
• Voltage range of bypass 80VAC*(1±5&)~ 285VAC*(1±5%)
• Voltage range of battery 48VDC
• Battery Capacity 12VDC*4
• Backup time half loaded≥10 minutes, Full loaded ≥ 5minutes(Standard)
• Transient rush current in boo-up stand < 150% of rated current)
• Battery charger time charger to 90% battery capacity in 5 hours (Standard), Dependent on the capacity of external batteries(Long backup time)
• Output Voltage 230vac ±2%(inverter output)
• Output Frequency 50±5%(line mode) 50Hz+-2%(battery mode)
• Dynamic voltage transient range <5%
• Dynamic transient Restore  <60ms
• waveform Sine wave THD <3%(linear load) Sine wave THD <8% (nonlinear load)
• Input power Factor 0.8
• Overload Capacity 105~125%>60s,126~150%>30s The recover point is 90%
• Current peak coefficient 3:1
• transfer time <4ms
• Alarm Function AC/DC input under abnormal, Overload condition and inverter problems

01 year warranty 0
